Uhlolojikelele Lomkhiqizo

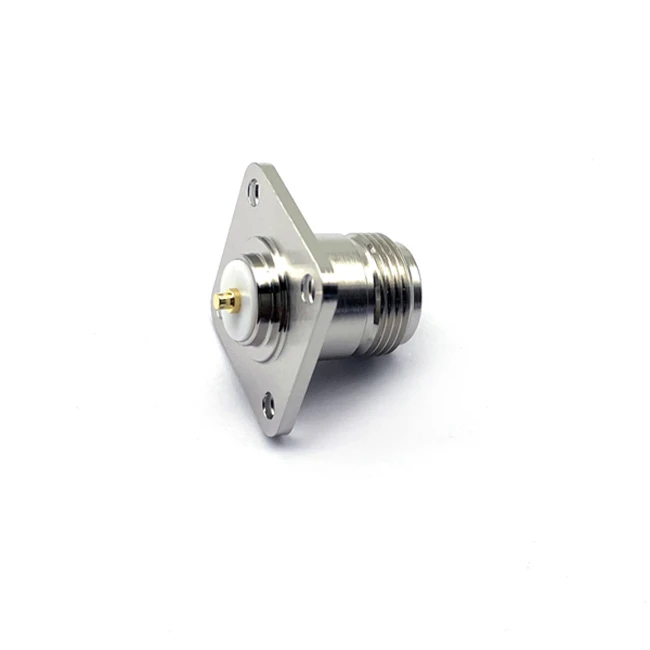

Imodeli yesixhumi se-N female mount mount N-520KFD-191.N uchungechunge luyizikulufu ezidume kakhulu-ze-coupling middle-noma{10}}izixhumi ezinamandla eziphansi ze-coaxial ezine-impedances engu-50Ω kanye ne-75Ω. Asetshenziswa kakhulu kumathuluzi kagesi noma izinhlelo zokusebenza lapho kudingeka ukumelana nokudlidliza nokuvikelwa kwemvelo, okuhlanganisa okokusebenza kwezokuxhumana, izakhi ze-coaxial, ama-duplexer, ama-couplers, uhlelo lokuhlola i-microwave nenethiwekhi ye-microwave noma izintambo ze-RF ezixhumayo. Ixhunywe ngokunemba okuphezulu kwezintambo eziguquguquka kancane noma eziqinile kancane Izixhumi ze-N zingasebenza kufika ku-11GHz okuholela ku-VSWR ephansi.Isixhumi se-N female mount mount sivala ububanzi besiginali ukusuka ku-0 kuye ku-11 GHz, ngezinguqulo ezithuthukisiwe ezifinyelela ku-18 GHz. Iphinde inikeze izinketho ezimbili ze-impedance: 50 ohms, esetshenziswa kabanzi kwezokuxhumana ngeselula, idatha engenantambo, nezinhlelo zokupheja, kanye nama-ohms angama-75, ikakhulukazi amasistimu kamabonakude wekhebula.
Ezogesi
|
Impedance |
50Ω |
|
I-Frequency Range |
0-6GHz |
|
I-Voltage esebenzayo |
Ngaphansi noma kulingana no-1000V |
|
I-VSWR |
Ngaphansi kokuthi noma kulingana nokuthi 1.15@2.5GHz, Ngaphansi noma kulingana nokuthi 1.25@6GHz |
|
I-Insulation Resistance |
Kukhulu noma kulingana no-5000mΩ |
|
Ukumelana ne-Voltage |
2500V |
|
Ukumelana Nokuxhumana Kwesikhungo |
Ngaphansi noma kulingana no-1mΩ |
|
Ukumelana Nokuxhumana Kwangaphandle |
Ngaphansi noma kulingana no-1mΩ |
|
I-Center Contact Retention Force |
Kukhulu noma kulingana no-0.56N |
|
Ukuqina |
500 imijikelezo |
Material kanye Plating
| I-N-520KFD-191 |
Okubalulekile |
Ukucwenga |
|
Umzimba |
Ithusi |
Cu-Sn-Zn3 |
|
Umqhubi wesikhungo |
Ithusi le-Phosphor |
Ag |
|
I-Coupling Nut |
Ithusi |
Cu-Sn-Zn3 |
|
O-Ukutywinwa kwendandatho |
Irabha yeSilicone |
|
|
I-insulator |
I-PTFE |
|
|
Okubalulekile |
Ukucwenga |
|
|
Umzimba |
Ithusi |
Cu-Sn-Zn3 |
|
Umqhubi wesikhungo |
Ithusi le-Phosphor |
Ag |
Ezemvelo
|
Izinga Lokushisa |
-65℃~ +165 degree |
|
Umswakama |
＜95％ |
|
Ukuhlolwa kwenkungu-kasawoti |
96h |
FAQ
Umbuzo: Kungani Ukhetha Thina?
A: Umuzwa Ocebile
Singabakhiqizi abaholayo nabahlinzeki bezixhumi, amakhebuli angama-coaxial, neminye imikhiqizo, esinesipiliyoni seminyaka engaphezu kwengu-20 sisebenzela amakhasimende amaningi emikhakheni eyahlukene.
Izisetshenziswa Ezithuthukile
Isizinda sethu sokukhiqiza njengamanje sinemigqa eminingi yokukhiqiza kanye nenkundla yokucubungula ephelele.
Isevisi Enhle Kakhulu
Ngenxa yokubambisana okuseduze phakathi kwethimba lethu elinolwazi lokukhiqiza nokucubungula kanye nethimba lethu labadayisi lamazwe ngamazwe elizinikele, sizibophezele ekunikezeni amakhasimende ethu ikhwalithi enokwethenjelwa,{0}}ngokulethwa kwesikhathi, kanye{1}}nokuthengisa kwangaphambili{2}nangemuva{2}}kwesevisi{2}}yokuthengisa.
Amanani Wokuncintisana
Silwela ukusiza amakhasimende ethu ukuthi onge izindleko, athuthukise ukuncintisana kwawo, futhi enze inzuzo.
Q: Indlela yokuxazulula inkinga yezobuchwepheshe?
IMP: Amahora angu-24 ngemva-kwesevisi yokubonisana nawe nokwenza inkinga yakho ixazululwe kalula.
Q: Ingabe uyayivivinya yonke imikhiqizo yakho ngaphambi kokuthunyelwa?
IMP: Yebo, siyahlola ukusebenza, sishise-ekuhlolweni, nasekuhloleni okokugcina kuyo yonke imikhiqizo.
Q: Indlela Entsha Yokuncoma Umkhiqizo?
IMP: Sizoncoma imikhiqizo emisha neminye imikhiqizo ethengiswa kahle emakethe yeKhasimende kumakhasimende ukuthuthukisa imakethe.
1.Nikeza imininingwane yemikhiqizo: Ukucaciswa, ukusetshenziswa, umbala, idatha ye-tenical njll.
2.Nikeza amasampula
Q: Senzenjani ngemva kokuthola i-oda lakho?
A:Ngaphambi{0}}ukukhiqiza:
1. Sizoqinisekisa ikhwalithi oyifisayo futhi siyicacise ekucacisweni komkhiqizo (PI).
2. Sizokuthumelela isixazululo sethu sokupakisha ukuze usigunyaze.
3. Sizokuthumelela amalebula ethu ukuze usigunyaze.
4. Sizolungiselela amadokhumenti efomethi ukuze uwagunyaze.
Ngesikhathi sokukhiqiza:
5. Sizokuthumelela izithombe zokuhlolwa kwezimpahla.
6. Sizokuthumelela umbiko wokuhlola.
Sizokwazisa ngesikhathi esiqondile sokulethwa sokubhukha kwakho.
Ngemva kokulayisha:
7. Sizolayisha ngokucophelela izimpahla futhi sikuthumelele izithombe zezimpahla ezilayishwayo.
8. Sizoncoma eminye imikhiqizo yethu{1}}ethengiswa kakhulu futhi sibeke amasampula esitsheni sakho.
Umhlahlandlela Woku-oda
Thumela uphenyo ngewebhusayithi yethu.
Abasebenzi bethu bezokuthengisa bazophendula umbuzo wakho phakathi namahora angama-24 futhi banikeze isisho sochwepheshe.
Sizoqinisekisa intengo, isikhathi sokulethwa, imigomo yokukhokha, njll.
Ikhasimende lizokhokha ngokuvumelana nenkontileka esayiniwe futhi lisithumelele irisidi yasebhange.
Isigaba Sokukhiqiza - Siyakwazisa ukuthi siyitholile inkokhelo yakho futhi sizokhiqiza ngokuvumelana nemibandela yakho. Sizokuthumelela izithombe ukuze uzigunyaze ngaphambi kokuthunyelwa.
Izimpahla zingathunyelwa kuwe ngempahla yendiza noma yasolwandle ngokwezidingo zakho. Sizohlinzeka ngezinsizakalo zokuthutha ezigcwele kuze kufike izimpahla. I-oda liyaqedwa lapho ikhasimende lethu lithola izimpahla futhi lisinikeza impendulo.
I-Zhenjiang Tongda Electronics Co., Ltd. ingumkhiqizi ochwepheshe wesixhumi se-N female mount mount, ekunikeza imikhiqizo ekufanele.
