Incazelo yomkhiqizo

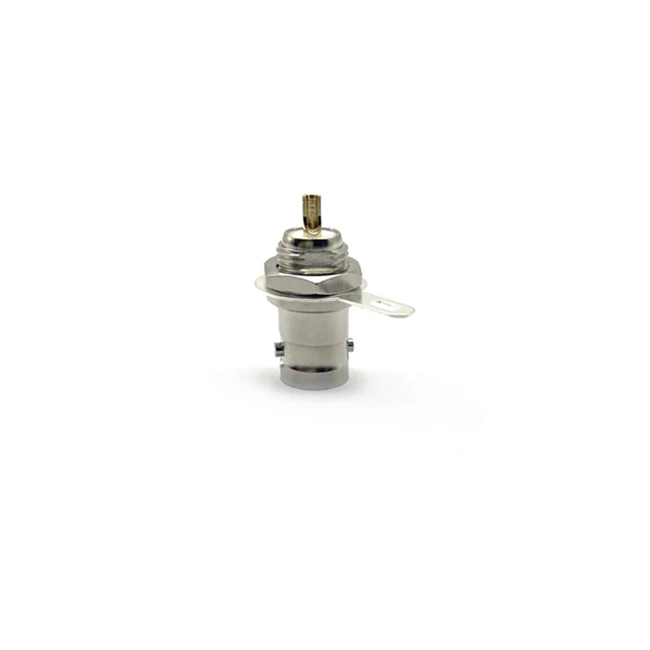

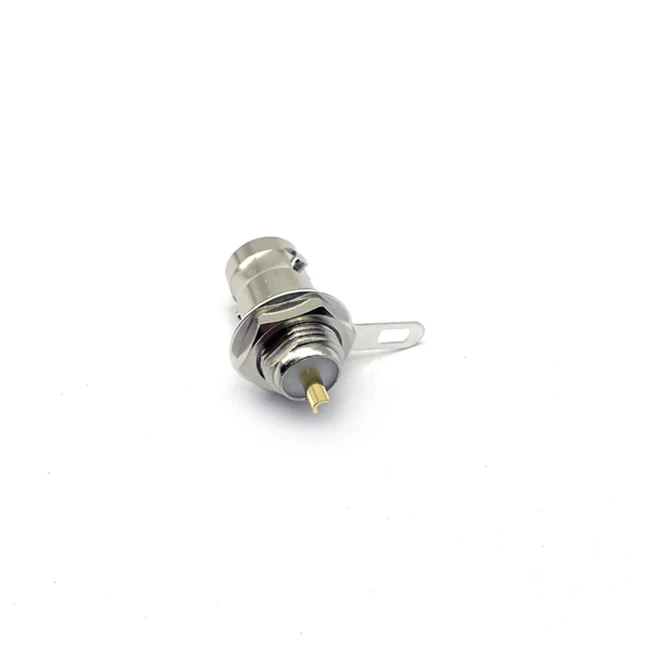

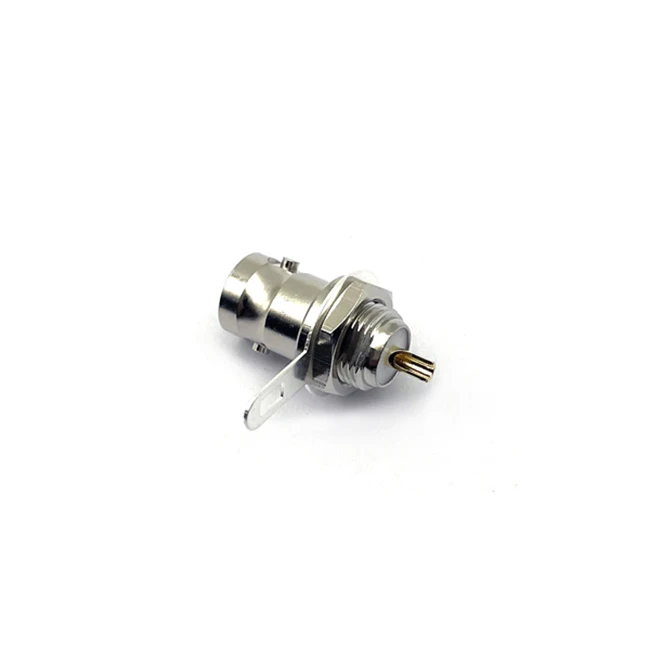

Imodeli yesixhumi se-bulkhead yesifazane se-BNC yi-BNC-50KY-13.Lolu chungechunge lwe-BNC luyizixhumi ze-bayonet-lock ezijwayelekile ze-coaxial, ezinokuphazamiseka kwesici 50Ω noma 75Ω. Banezici zokuzibandakanya okusheshayo nokungahlangani, ukuthembeka okuphezulu, isakhiwo esilula njll, zisetshenziselwa ukuxhuma izintambo ze-RF coaxial ku-IT, inethiwekhi yezimboni, imishini yezokwelapha, ukuxhumana kwedatha, izinhlelo zevidiyo kanye nohlelo lokusakaza.
Izixhumi ze-BNC zisetshenziselwa ukuxhuma imigqa yesignali emibili noma ngaphezulu futhi zingasetshenziswa ukufaka amaphaneli. Esinye isiphetho isixhumi sowesifazane se-BNC esingasetshenziswa nesixhumi sowesilisa se-BNC. Isixhumi se-bulkhead yesifazane se-BNC sinesimo esisheshayo-ekukhiyweni kohlaka lokuxhumana oluvumela ukuxhumana okusheshayo nokunqanyulwa. Isixhumi se-BNC sinokuxhuma kwe-twist lock, okuyenza ifaneleke kakhulu izinhlelo zokusebenza ze-RF.
Ezogesi
|
Impedance |
50Ω noma 75Ω |
|
I-Frequency Range |
0-3GHz |
|
I-Voltage esebenzayo |
500V |
|
I-Inner Conductor Retention Force |
Kukhulu noma kulingana no-0.56N |
|
I-VSWR |
Ngaphansi noma kulingana no-1.3(DC-1GHz) |
|
I-Insulation Resistance |
Kukhulu noma kulingana no-5000mΩ |
|
Ukumelana ne-Voltage |
1500V |
|
I-Center Contact Resistance(mΩ) |
Ngaphansi noma kulingana no-1.5 |
|
Ukumelana Nokuxhumana Kwangaphandle(mΩ) |
Ngaphansi noma kulingana no-1.0 |
|
Ukuqina |
500 imijikelezo |
Material kanye Plating
|
I-BNC-50KY-13 |
Okubalulekile |
Ukucwenga |
|
Umzimba |
Ithusi |
Ni |
|
Umqhubi wangaphakathi |
I-Phosphor Bronze |
Au |
|
I-Coupling Nut |
Ithusi |
Ni |
|
I-Sleeving |
Ithusi |
Ni |
|
O-Indandatho |
Irabha yeSilicone |
|
|
I-insulator |
I-PTFE |
|
|
Nut |
Ithusi |
Ni |
|
Iwasha |
I-Phosphor Bronze |
Ni |
Ezemvelo
|
Izinga Lokushisa |
-55~{1}} degree |
|
Umswakama |
＜95％ |
|
Ukuhlolwa kwenkungu-kasawoti |
48h |
I-Zhenjiang Tongda Electronics Co., Ltd. ingumkhiqizi ochwepheshe wesixhumi se-bulkhead sabesifazane se-BNC, ekunikeza imikhiqizo ekufanele.
